Eco Friendly Alarm & Arid Bilge Shutdown

$1,195.00

Monitor captured oil levels in the Eco Friendly unit

Clear
SKU: N/A Categories: , , Tags: , ,

Description

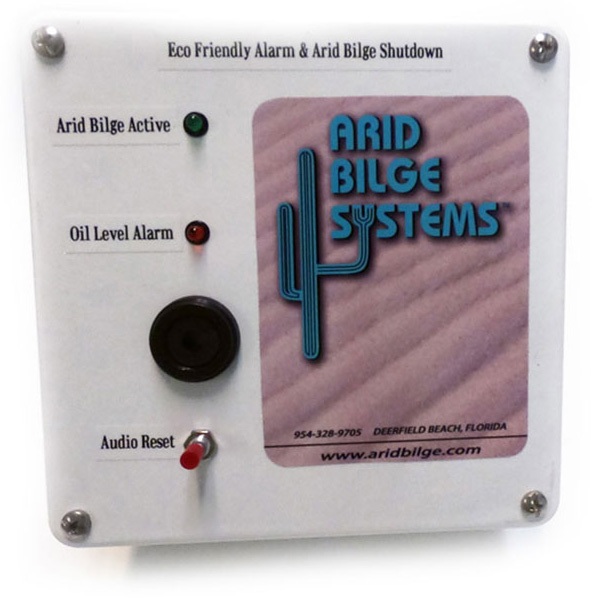

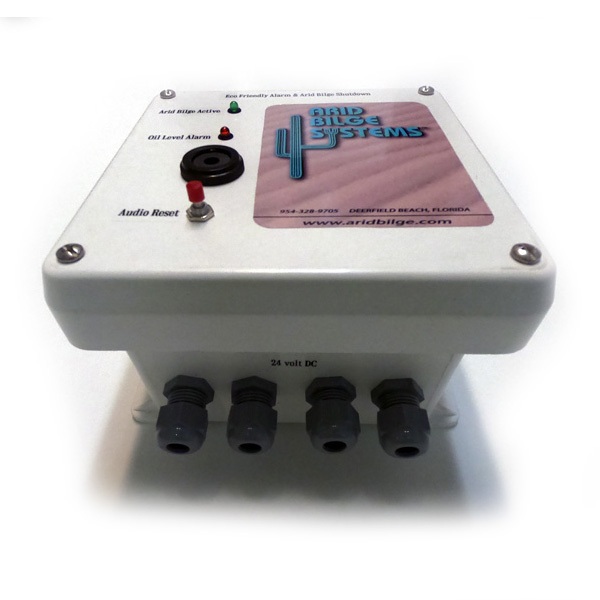

Eco Friendly Alarm connects to a probe in the Eco Friendly Discharge Companion

It alarms when the probe contacts oil or air, the probe can be adjusted for different acceptable levels inside the Eco Friendly Discharge Companion.

The alarm has 20 minutes time delay to prevent false triggering
The reset Audio reset button silences the alarm for 20 minutes
The green Arid Bilge Active light goes out after 2 hours of alarm activity disconnecting power to the Arid Bilge System if properly connected.
This unit will support a duplicate remote display panel usually mounted at the helm
The Alarm is available in 12 or 24 volt DC or 120 volt AC power
The time delay and shutdown are end user adjustable

Additional information

Weight4 lbs
Dimensions10 × 9 × 6 in
Height

8.0 inches / 20.5 cm

Width

7.5 inches / 19.25 cm

Depth

5.5 inches / 13.5 cm

Weight

1.6 lbs

Main unit material

Plastic

Power requirements

12 or 24 volt DC or 120 volt AC versions

Voltage

12 volt DC, 24 volt DC
